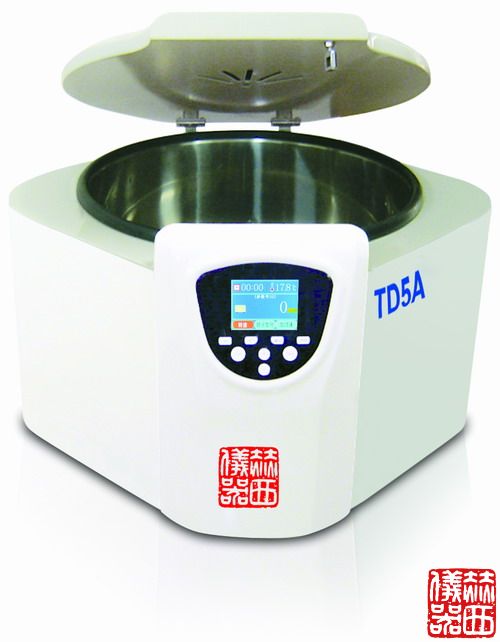

| TD5A laboratory bench top low speed centrifuge |
 |
| Product Name： TD5A laboratory bench top low speed centrifuge |
| Max Centrifugalforce:4×250ml Max Speed(r/min):5500 |
| PIN:TD5A |
| Brand:HEREXI |
| Measurement:set |
| Weight:35Kg |
|
| This series is widely applied in experiments and scientific researches of various fields such as biochemistry,genetic engineering,forestry science,food safety,blood stations,clinical test,etc. |
| Product Details |
|
Features:
Enhanced ergonomics to achieve a streamline design that is safe,aesthetic and practical.

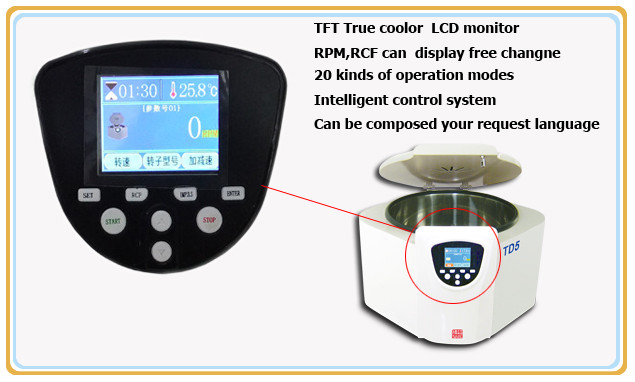

With TFT true-color LCD wide-screen touch monitor featured by intelligent control,easy and convenient operation,a touch panel and a simultaneous indication of both the set parameters and operation ones.
With a complete steel structure and a stainless steel centrifuge cavity,it is sturdy and durable.
Variable-frequency brushless motor that is maintenance and dust-free.
10 kinds of speed-up and speed-down options.Can store 20 user program which can be directly used by the user.The program previously used with be running when the machine is started.
With a dedicated key indicating the centrifugal force.
With a motor gate lock mute mechanical & electrical integration.
Multiple layers of shock absorbers with the function of automatic balancing to achieve smooth operation.
A variety of swing rotors and angle rotors applicable for universal tubes and microtiter plates to be chosen by customers.Pictures of the rotor can be shown during the operation to make the running more human-centered.
|
|
Specification:
|
|
Model
|
TD5A
|
|
Max speed（r/min）
|
5500
|
|
Max RCF（×g）
|
4800
|
|
Max capacity
|
4×250 ml
|
|
Time range
|
0-99h59min
|
|
Operation programme
|
20
|
|
Control and drive system
|
Frequency motor，micro control，direct drive
|
|
Total power
|
500 w
|
|
Noise
|
≤65dB
|
|
Power
|
AC220V 50Hz
|
|
Weight
|
35 Kg
|
|
Dimension（L×W×H）
|
600×540×360 mm
|
|
|

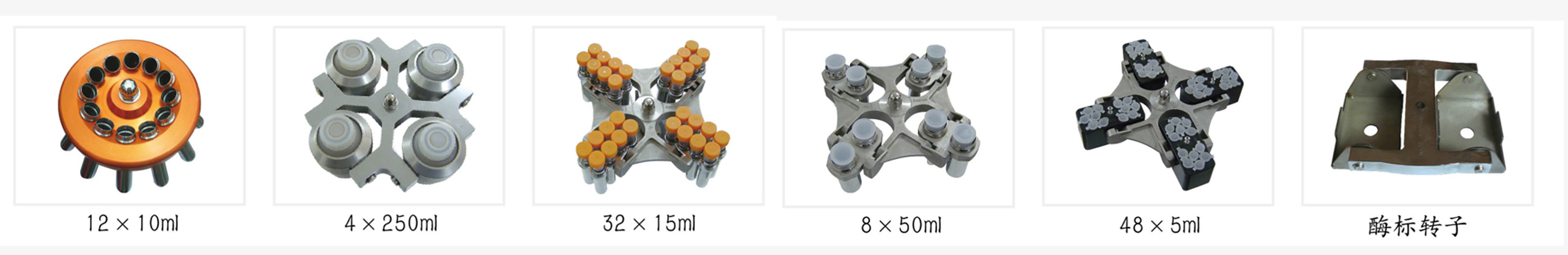

Model
|
Capacity
|
TD5A
|
|
Max speed（r/ min）
|
Max RCF（×g）
|
|
Angle rotor
|
12×10 ml
|
5500
|
4328
|
|
Swing bucket rotor
|
12×15 ml
|
5000
|
4500
|
|
24×10 ml
|
5000
|
4500
|
|
4×250 ml
|
4000
|
3290
|
|
Adaptor
|
8×50 ml
|
|
|
|
24×15 ml
|
|
|
|
32×10 ml
|
|
|
|
40×5 ml
|
|
|
|
Swing bucket rotor
|
4×50 ml
|
5000
|
4600
|
|
4×100 ml
|
5000
|
4800
|
|
8×50 ml
|
4000
|
2810
|
|
32×15 ml
|
4000
|
2810
|
|
32×15 ml
|
4000
|
2810
|
|
32×10 ml
|
4000
|
2810
|
|
48×5 ml/2 ml
（vacuum tube）
|
4000
|
2940
|
|
76×5 ml/2 ml
（vacuum tube）
|
4000
|
3100
|
|
Swing micro-plate rotor
|
2×2×96 hole
|
4000
|
2360
|
|
|
|
|
|
|
