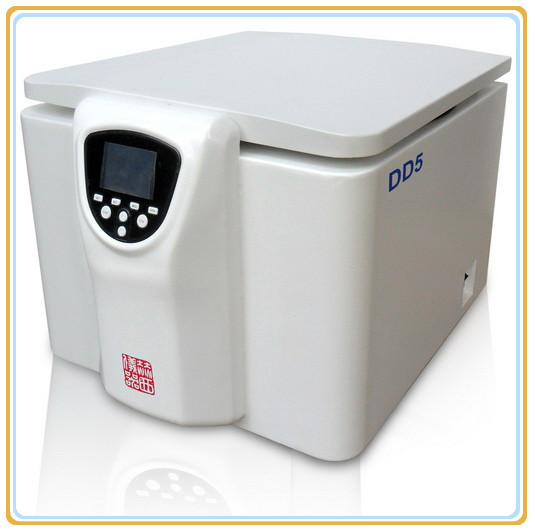

| HereXi DD5 bench top large capacity centrifuge |
 |
| Product Name：HereXi DD5 bench top large capacity centrifuge |
| Max Centrifugalforce:4×500ml Max Speed(r/min):5000 |
| PIN:DD5 |
| Brand:HEREXI |
| Measurement:set |
| Weight:65Kg |
|
| This machine is suitable for separation of different types of fluid done in biological,chemical,radioactive and immunity labs as well as for applications in pharmaceutical and biological products.. |
| Product Details |
|
Feature:
The design of the whole machine is in line with the ergonomics,with streamlining sculpt.With a complete steel structure and a stainless steel centrifuge cavity,it is safer,better looking and more efficient.
With TFT true-color LCD wide-screen touch monitor featured by intelligent control,touchable/push-botton operation models for simultaneous control.
With a complete steel structure and a stainless steel centrifuge cavity,it is sturdy and durable.
Variable-frequency brushless motor that is maintenance and dust-free to achieve quite and clean operation.
10 kinds of speed-up and speed-down options.
With a dedicated key for indicating the centrifugal force.You can change the parameter when it’s running without stop machine.
With a motor gate lock mute mechanical & electrical integration.
Multiple layers of shock absorbers with the function of automatic balancing to achieve smooth operation.
A variety of swing rotors and angle rotors applicable for universal tubes and microtiter plates to be chosen by customers.
Can store 20 user programme.
|
|
Specification:
|
|
Model
|
DD5
|
|
Max speed（r/min）
|
5000
|
|
Max RCF（×g）
|
4800
|
|
Max capacity
|
4×500 ml
|
|
Time range
|
0-99 min
|
|
Noise
|
≤65 dB
|
|
Power
|
AC220V 50Hz
|
|
weight
|
50 Kg
|
|
dimension（L×W×H）
|
586×644×370 mm
|
|
|

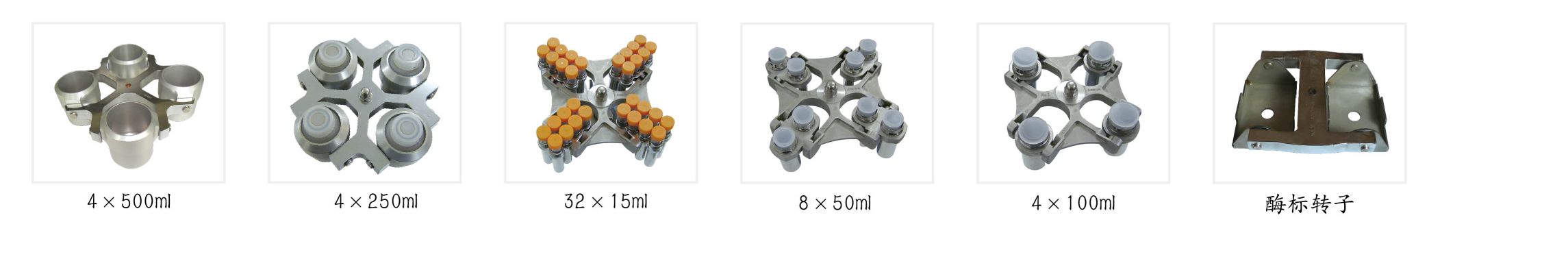

Model
|
DD5
|
|
Capacity
|
Max speed（r/min）
|
Max RCF（×g）
|
|
Angle rotor
|
12×10 ml
|
5000
|
3570
|
|
Swing rotor
|
4×500 ml（round cup)
|
4000
|
3760
|
|
Adapt-or
|
4×250 ml/300 ml
|
|
|
|
4×100 ml
|
|
|
|
12×50 ml
|
|
|
|
32×15 ml
|
|
|
|
48×10 ml
|
|
|
|
72×5 ml
|
|
|
|
Swing rotor
|
148×5 ml/2 ml
（vacuum tube)
|
4000
|
2900
|
|
48×5 ml/2 ml
（vacuum tube)
|
4000
|
2950
|
|
76×5 ml/2 ml
（vacuum tube)
|
4000
|
3100
|
|
12×15 ml
|
5000
|
4500
|
|
24×10 ml
|
5000
|
4500
|
|
4×100 ml
|
5000
|
4800
|
|
8×50 ml
|
4000
|
2810
|
|
32×15 ml
|
4000
|
2810
|
|
32×10 ml
|
4000
|
2810
|
|
Swing micro-plate rotor
|
2×2×96 hole
|
4000
|
2360
|
|
|
|
|
|
|
