| LR10M Floor type Low- speed Large-capacity Refrigerated centrifuge |
 |
| Product Name：LR10M Floor type Low- speed Large-capacity Refrigerated centrifuge |
| Max Centrifugalforce:6×1000ml Max Speed(r/min):10000 |
| PIN:LR10M |
| Brand:HEREXI |
| Measurement:set |
| Weight:280Kg |
|
Low-Speed Larger-Capacity Refrigerated centrifuge
Large capacity centrifuge,max capacity:6*1000ml
Widely used for blood center,medical
Max speed : 10000r/min |
| Product Details |
|

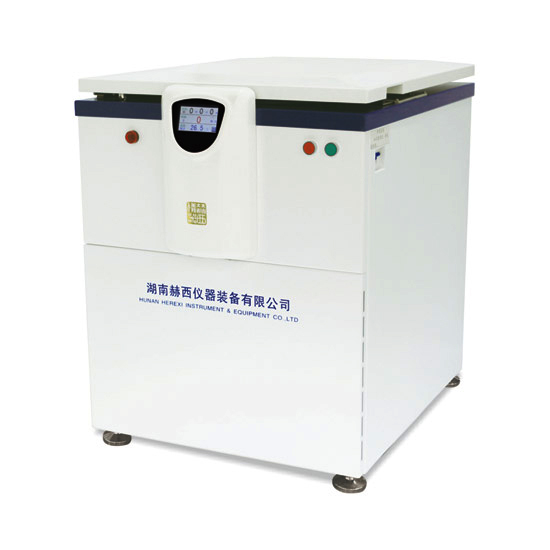

LR10M Floor type Low- speed Large-capacity Refrigerated centrifuge
Features:
AV motor of variable frequency and high toque,free from contamination caused by carbon dust,which helps to prolong the service life.
Imported variable frequency drive system and automatic control system to ensure steady and reliable operation.
Import compressor unit is used for the refrigeration system which allows free temperature adjustment and achieves high-precision temperature controls and reduced noise.
Maximum capacity 6x1000ml,Maximum rotation speed 10000rpm.
Multiple protections such as overheat,hypervelocity,electronic locking and imbalance.
Metallic structure with a stainless steel cavity,hence strong and durable.

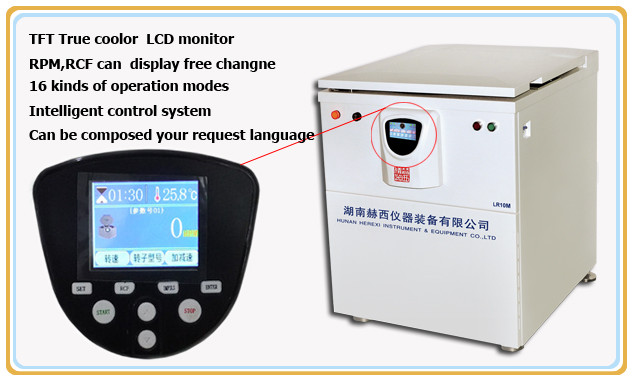

Intelligent interface featured by a TFT true-color LCD wide-screen touch monitor,micro-computer control and simultaneous indication of both the set parameters and operation one.
With 16 operation programs to be set by the user and the control parameters of the rotor to be modified at any time.
Operations can be programmed,10 levels of speed-up and speed-down time limits for the user to choose freely.
Can indicate the ascending and declining curves of the rotor ,the centrifugal integral curves and the temperature curves.
|
|
Model
|
LR10M
|
|
Max Capacity
|
6×1000ml
|
|
Max Speed（r/min）
|
6,000
|
|
Max RCF（×g）
|
6,680
|
|
Speed precision
|
±50r/min
|
|
motor
|
AC Motor
|
|
Refrigeration system
|
Import fluoride-free compressor and control valve（R404a）
|
|
Control way
|
PC control
|
|
Operation pro grame
|
16
|
|
Temp.control range
|
-20℃～+40℃
|
|
Temp.precision
|
±1℃
|
|
Timer range
|
0-99h59min
|
|
Total power
|
4.0kw
|
|
Power
|
AC220 V/50 Hz 30A
|
|
Noise
|
<68dB(A)
|
|
Dimension
（L×W×H）
|
840×730×950 mm
|
|
weight
|
270kg
|
|
|
Model
|
capacity
|
LR10M
|
|
|
|
Speed
|
RCF
|
|

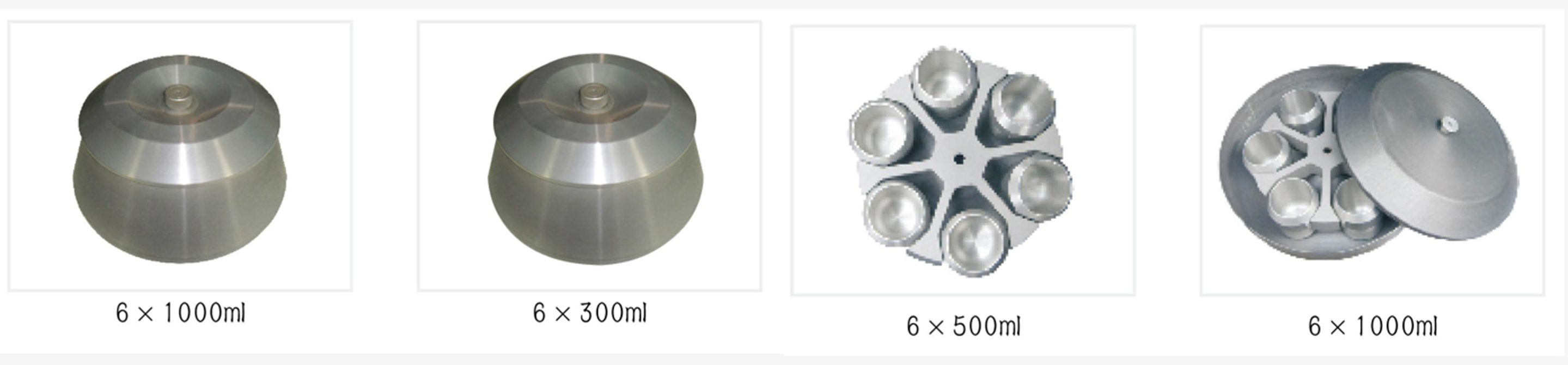

Angle rotor
|
6X300ml
|
10000
|
18300
|
|
|
6X500ml
|
8000
|
11800
|
|
|
6X1000ml
|
7000
|
11500
|
|
Swing rotor
|
6X1000ml
|
4200
|
5100
|
|
|
|
 |
|
|
