Refrigeration mode: compressor refrigeration, environmental protection refrigerant
The evaporation rate is affected by the absorbed energy and the speed of vacuum pump. The evaporation surface area of a sample is relatively large, rather than the volume and quantity of samples. Therefore, it is better to use a cold trap than to use a larger vacuum pump. On the one hand, the application of cold trap is helpful to condense steam, on the other hand, it can improve the evaporation density of organic solution for better condensation.
Product Details
features:
TFT true color touch screen display temperature

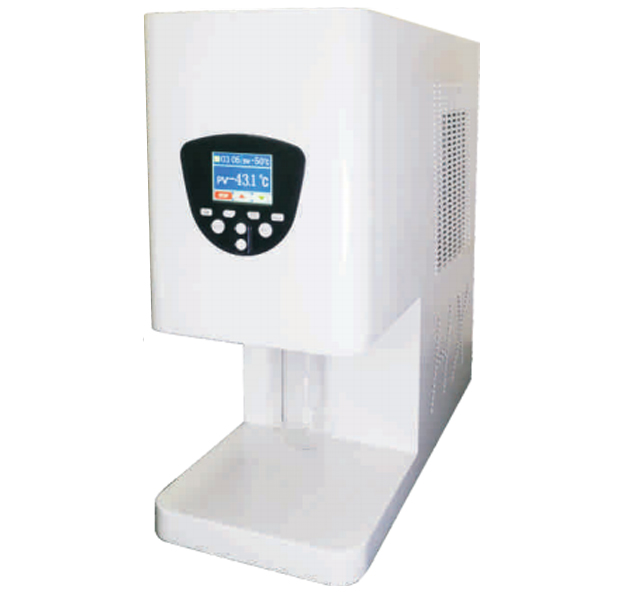

Cold trap
Capacity: optional
Temperature range: normal temperature to - 45 ° C
Limit temperature: - 50 ° C
Maximum capture capacity of concentration condensation: medium: water 260ml / 12h temperature setting - 15 recommended 300ml collection bottle
Medium: ethanol 284ml / 6h, temperature setting - 35 ℃ to - 40 ℃, 600ml collecting bottle is recommended
Condensing area of collecting chamber: 760 cm
Safety function: compressor overload protection, compressor timing protection, high voltage switch protection, temperature self-regulation, defrosting
Compressor coolant: R404A
Temperature regulation: ± 1 ° C
Circulation: closed cycle
Related centrifuge
Desktop high speed centrifuge
3H series intelligent high speed freezing centrifuge
Tgl20mw table type large capacity high speed freezing centrifuge
HR / t16m HR / t20m table type high speed freezing centrifuge
HR / t16mm miniature high speed freezing centrifuge
Tg16mw desktop high speed centrifuge
H / t12mm H / t16mm H / t18mm table type high speed centrifuge
Table type low speed centrifuge (below 1000r / min)
TDL5M / 6m / 8m desktop low speed refrigeration
DD5 desktop high capacity low speed centrifuge
TD6 / tdz6-ws table type low speed multi station centrifuge
Td5 / td5a table type low speed centrifuge
Tdz5 / tdz5-ws table type low speed centrifuge
TD4 / tdz4 / tdz4-ws table type low speed centrifuge
Independent high speed freezing centrifuge (above 1000r / min)
Hr26m high speed freezing centrifuge
Hr21m / hr20m high speed freezing centrifuge
HR / t20mm independent high speed freezing centrifuge
Independent low speed centrifuge (below 1000r / min)
Lrm-12l super capacity cryocentrifuge
Es5000 intelligent electronic balance
Lr10m large capacity refrigerated centrifuge
Lr6m / lr7m / lr8m low speed and large capacity refrigerated centrifuge
Tl5r / tl6r / tl8r self standing low speed freezing centrifuge
R5m / dd5m independent low speed centrifuge
Special centrifuge
DD5 / dd5m / tl5r automatic decapitation centrifuge
H / t12mm blood centrifuge
Tlw5r desktop chrysanthemum centrifuge
Td5t / lt6y petroleum centrifuge

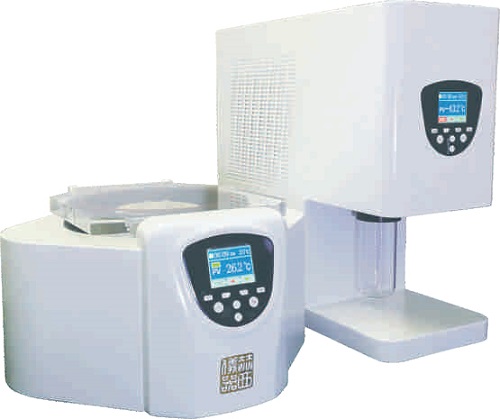

Vacuum concentration centrifuge series
